Question 1

How do I plan a home gym layout?

Accepted Answer

Start by measuring your space (width, depth, ceiling height). Enter those dimensions into a 3D gym planner, then drag in your anchor piece (usually a power rack or cable machine) and arrange equipment around it. Check clearances — you need at least 3 ft of space on each side for safe movement. Plan the full layout before buying anything to avoid costly mistakes.

Question 2

Is there a free gym layout planner?

Accepted Answer

Yes. 3D Gym Planner is a free gym layout planner that runs in your browser with no account or download. Set your exact room size, drag 134+ to-scale equipment pieces into the space, check clearances with live collision detection, track your budget, and walk through the finished layout in first person before you buy anything.

Question 3

What equipment do I need for a home gym?

Accepted Answer

A solid starter home gym needs three things: a power rack or squat stand for compound lifts, a barbell with plates, and an adjustable bench. From there, add adjustable dumbbells, a cable machine or functional trainer, and a cardio piece like a rower. The exact equipment depends on your goals and available space.

Question 4

How much space do I need for a home gym?

Accepted Answer

A functional home gym can fit in as little as 100 sq ft (10x10 ft), but 200 sq ft is the sweet spot for a complete setup. A standard one-car garage (roughly 12x20 ft = 240 sq ft) is enough for a power rack, cable machine, dumbbells, and a cardio piece with space to move.

Question 5

How much does a home gym cost?

Accepted Answer

A budget home gym with a basic rack, barbell, and plates can be built for $800–1,500. A mid-tier setup with a quality power rack, cable machine, adjustable dumbbells, and rubber flooring typically runs $4,000–6,000. A premium build with commercial-grade equipment can exceed $15,000. Buying used equipment can cut costs by 40–60%.

Question 6

Is 3D Gym Planner free to use?

Accepted Answer

Yes. 3D Gym Planner is completely free to use. You can plan your home gym layout, place 134+ equipment pieces to scale, check clearances, track your budget, and export your floor plan — no credit card required.

Question 7

How much clearance do I need around gym equipment?

Accepted Answer

Power racks need at least 3 ft (90 cm) in front for barbell walkouts and ideally 2 ft on each side for plate loading. Cable machines and functional trainers need 4–5 ft in front for full-range movements. Treadmills and rowing machines need 3 ft behind for safety. Dumbbells and benches need 3 ft of open floor in front. A 3D gym planner with collision detection helps you verify these clearances before buying.

Question 8

Can I fit a power rack in a 10x10 room?

Accepted Answer

Yes, a 10x10 room (100 sq ft) can fit a compact power rack with a bench and barbell if you plan carefully. A standard power rack footprint is roughly 4x4 ft, but you need 3 ft in front for walkouts and 2 ft on each side for loading — that puts the minimum usable room width at around 8 ft. A 10x10 room works but leaves little space for anything else. Use a 3D planner to confirm before buying.

Question 9

What is a functional trainer and how much space does it need?

Accepted Answer

A functional trainer (also called a cable crossover or dual-stack cable machine) has two adjustable cable columns and lets you do hundreds of exercises from any angle. Most functional trainers have a footprint of 4–5 ft wide by 2–3 ft deep, but you need 5–6 ft of clearance in front of the machine for cable exercises at full extension. Budget dual-stack trainers start around $800; commercial-grade units run $3,000–6,000.

Question 10

What rubber flooring do I need for a home gym?

Accepted Answer

3/4-inch (19 mm) rubber stall mats are the most popular choice for home and garage gyms — they handle dropped weights, protect your concrete, and cost $40–60 per 4x6 ft mat. A 12x12 ft area needs about 6 mats ($250–360 total). For dedicated weightlifting platforms, use 3/4-inch rubber with a 3/4-inch plywood layer on top. Thin 3/8-inch rubber tiles work for cardio areas but aren't thick enough for free weights.

Question 11

How do I design a home gym with a low ceiling?

Accepted Answer

For ceilings under 8 ft: avoid pull-up attachments on power racks (you need 9–10 ft for full ROM), skip overhead press platforms, and choose low-profile cable machines. At 7–7.5 ft you can still squat, bench, deadlift, and use most selectorized machines. In 3D Gym Planner, enter your actual ceiling height — the tool flags equipment that exceeds it so you know before you buy.

Question 12

What's the difference between a power rack and a squat rack?

Accepted Answer

A power rack (also called a four-post cage) has four vertical uprights and safety spotter arms, letting you squat, bench, and overhead press without a spotter. A squat rack (or half rack) has two uprights and is more compact — good for smaller rooms. Power racks are safer for solo heavy lifting but need more floor space (typically 4x4 ft vs. 2x4 ft for a squat stand). A functional trainer attached to a half rack combines both into one footprint.

Question 13

How do I plan a 12x20 garage gym layout?

Accepted Answer

A 12x20 ft one-car garage (240 sq ft) is one of the most common home gym spaces. A popular layout: power rack centered on one short wall with 3 ft barbell clearance on each side, adjustable bench in front, dumbbell rack along a long wall, cable machine or functional trainer on the opposite short wall, and a cardio piece (rower or bike) along the remaining long wall. Leave the center open for floor exercises. Use a 3D gym planner to verify clearances before buying any equipment.

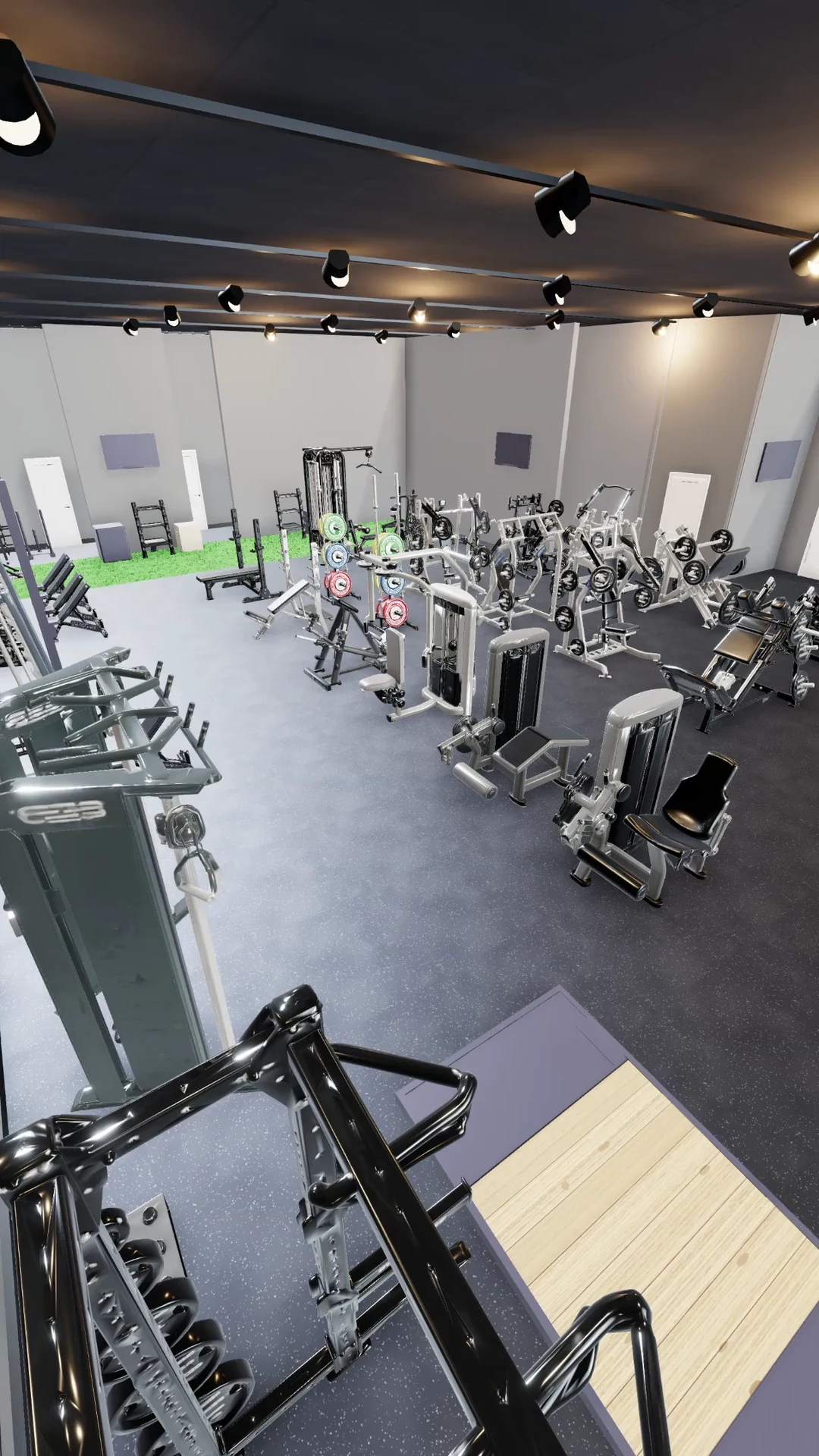

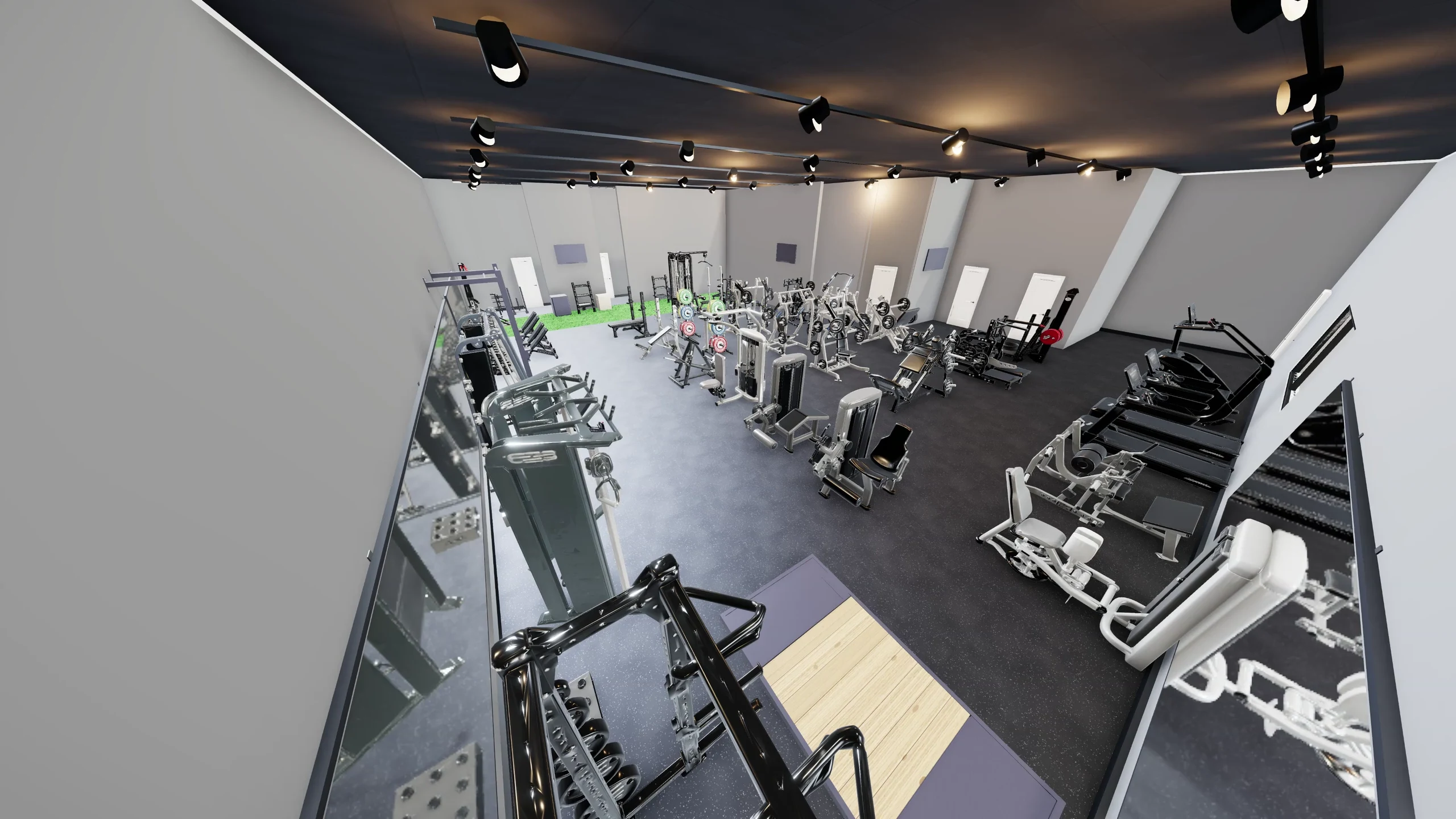

See your gym in 3D before you build it.
